Double-spiral batch mixers.

Double-spiral batch mixers are used for the preparation of homogenious mixtures from dry powdered and granulated mineral materials such as fertiliers, rubber derivatives; biological materials such as spices, and others such as  polymers, bentonit. They can also be used for the averaging of the composition of batches of materials.

Mixer 4C11 ( volume 600 dm3 ) is used for mixing of suspensions, emulsions, and solutions.

Prerequisites for the components for dry mixtures: particles' size of up to 10 mm, content of moisture of up to 5 %, for liquid materials viscosity of up to 100 cSt.

The central part of the mixer consists of single- or double spirals, placed on a vertical shaft which rotates.

The components are loaded into the mixer in order to achieve a homogeneous composition of the mixture. The material if offloaded from the mixer and the process may be repeated on another batch of material.

The non-uniformity of prepared mixtures does not exceed 2 - 3 %.

Mixing time up to 10-20 min.

  10С3 4C8 / 4C13 10C2
Volume of mixer, dm3 100 200 1200
Power of electric motor, kW 0,75 1,1 or 1,5 7,5
Speed of working body rotation, rpm 35 50 / 24 30-40
Number of spirals 1-2 1-2 2
Max. dimensions, mm:
- diameter of mixing chamber 500 600 1370
- height 1310 1700 2450
Max. weight, kg 85 150 450
Sound level (at distance 1 m), dB 45 50 70

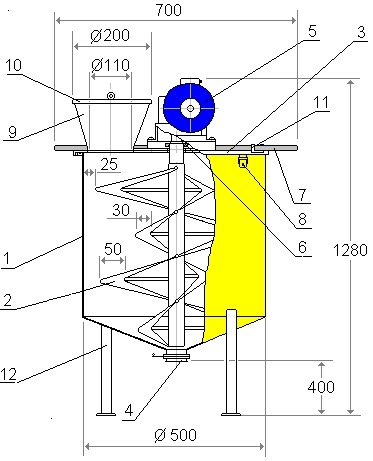

Mixer 10C3
spiraalsegisti joonis
1. Housing    2. Spiral    3., 10. Cover    4. Slader

5. Motor  6. Reductor  7. Handles  8, 11. Fixator

9. Feeding funnel   12. Frame

Pictures:

Segisti 10C3 Segisti 4C11 Kaksikspiraalne mikser 4C13

.
